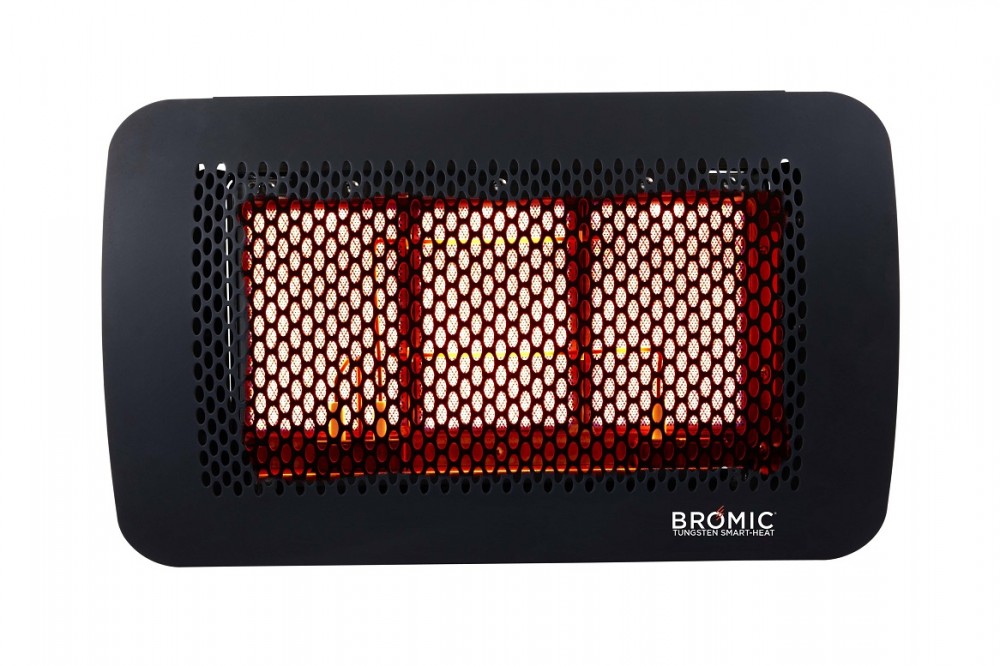

TUNGSTEN 300 - NG + BH8080001-1 Bracket

Code: BH02100011

US$1,508.00

Features

Features

Attractive black finish
Universal bracket — easy upgrade from 300 to 500 model.No additional plumbing or wiring required.
Bi-directional easy-pivot arm — 25° rotation each side.
Electronic ignition — one or multiple units can be switched on and off simultaneously from a single remote-located switch.
Automatic re-ignition — should the heater not re-ignite for any reason, the integrated “Flame Failure Safety Shut-off Control” turns the heater off immediately.
Stainless steel casing — components are protected from tampering. Assists in preventing dirt and dust from accumulating on the wiring and components.
Min. distance to combustible materials-Sides: 3.6’ / 1100mm.
(without heat deflector)2-Above (to ceiling): 3’6’ / 1100mm.
(with heat deflector)-Above (to ceiling): 1’2” / 1100mm.
Mounting height requirement to ground3-8’ / 2438mm.

  • BTU's: 26000
  • Gas Connection: 1/2" NPT Female
  • Electrical Connection: 3-Pin Insulated Plug
About this Series:

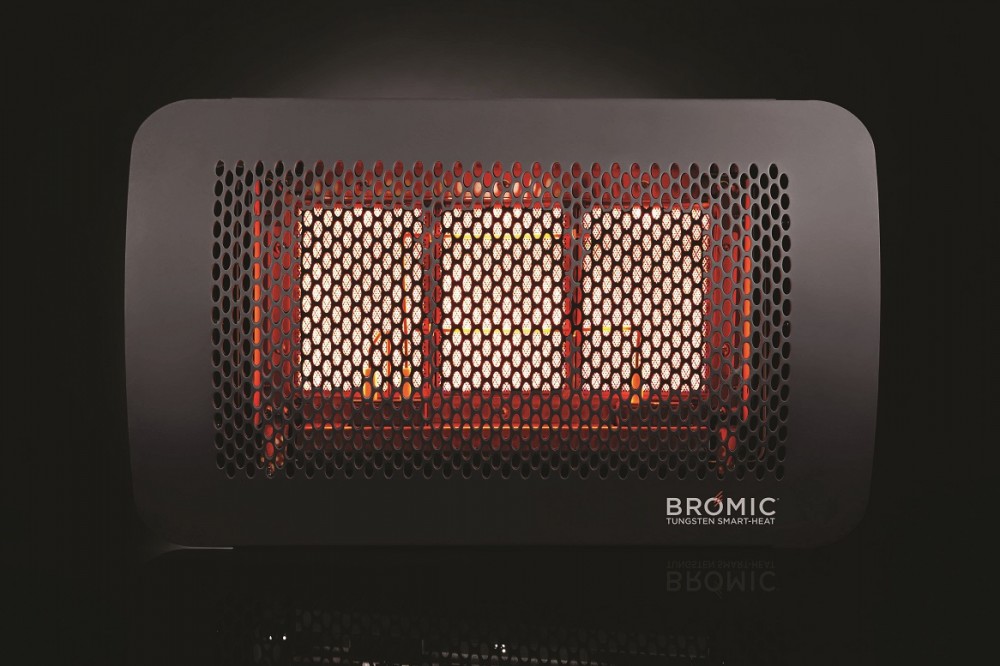

Tungsten Smart-Heat - 300 Series Patio Heater, Item # BH0210001. The Tungsten Smart Heat 300 series patio heater delivers a slick style for outdoor patio heat. Delivering an impressive 26,000 BTU’s, this heater uses 3 burners that emit a red glow for an impressive look. For larger patio areas, the Tungsten Smart Heat series is also available in a 500 series.




Specification

Specification

Dimensions


Depth/Extension:   14.09"
Height:   14.25"
Width/Diameter (in):   19.29"
Heating Dimensions
Pole Dimension:   156.00
Heating Specifications
Fuel Source:   Propane
Heating Diameter:   120 Feet
Lamping
Voltage Rating:   110V
Other Information
Material:   Stainless Steel
Weight:   33.00 lbs.
